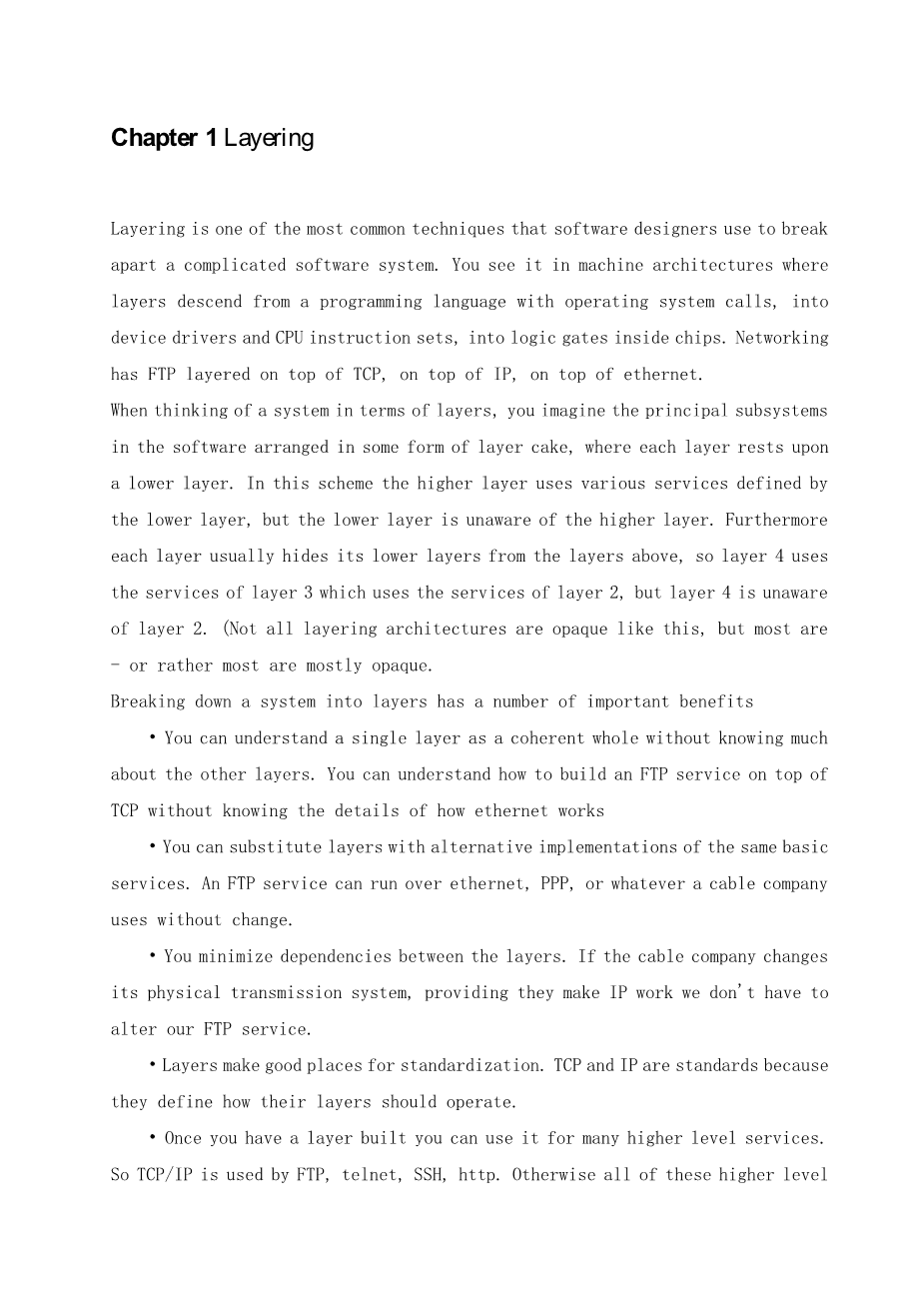

Chapter 1 Layering
Layering is one of the most common techniques that software designers use to break apart a complicated software system. You see it in machine architectures where layers descend from a programming language with operating system calls, into device drivers and CPU instruction sets, into logic gates inside chips. Networking has FTP layered on top of TCP, on top of IP, on top of ethernet.
When thinking of a system in terms of layers, you imagine the principal subsystems in the software arranged in some form of layer cake, where each layer rests upon a lower layer. In this scheme the higher layer uses various services defined by the lower layer, but the lower layer is unaware of the higher layer. Furthermore each layer usually hides its lower layers from the layers above, so layer 4 uses the services of layer 3 which uses the services of layer 2, but layer 4 is unaware of layer 2. (Not all layering architectures are opaque like this, but most are - or rather most are mostly opaque.
Breaking down a system into layers has a number of important benefits
bull; You can understand a single layer as a coherent whole without knowing much about the other layers. You can understand how to build an FTP service on top of TCP without knowing the details of how ethernet works
bull; You can substitute layers with alternative implementations of the same basic services. An FTP service can run over ethernet, PPP, or whatever a cable company uses without change.
bull; You minimize dependencies between the layers. If the cable company changes its physical transmission system, providing they make IP work we dont have to alter our FTP service.
bull; Layers make good places for standardization. TCP and IP are standards because they define how their layers should operate.
bull; Once you have a layer built you can use it for many higher level services. So TCP/IP is used by FTP, telnet, SSH, http. Otherwise all of these higher level protocols would have to write their own lower level protocols
Layering is an important technique, but there are downsides.
bull; Layers encapsulate some things well, but not all. As a result you sometimes get cascading changes. The classic example of this in a layered enterprise application is adding a field that needs to display on the UI, be in the database, and thus be added to every layer in between.
bull; Extra layers can harm performance. At every layer things typically need to be transformed from one representation to another. However the encapsulation of underlying function often gives you efficiency gains that more than compensate. A layer that controls transactions can be optimized and will then make everything faster.
But the hardest part of a layered architecture is deciding what layers to have and what the responsibility of each layer should be.
Although Im too young to have done any work in the early days of batch systems, I dont sense that people thought much of layers in those days. You wrote a program that manipulated some form of files (ISAM, VSAM, etc) and that was your application. No layers present.
The notion of layers became more apparent in the 90s with the rise of client-server systems. These were two layer systems: the client held the user-interface and other application code and the server was usually a relational database. Common client tools were VB, Powerbuilder and Delphi. These made it particularly easy to build data-intensive applications as they had UI widgets that were aware of SQL. This allowed you build a screen by dragging controls onto a design area and then using property sheets to connect the controls to the database.
If the application was all about the display and simple update of relational data, then these client-server systems worked very well. The problem came with domain logic: business rules, validations, calculations and the like. Usually people would write these on the client. But this was awkward and was usually done by embedding the logic directly into the UI screens. As the domain logic got more complex, this code became very difficult to work with. Furthermore embedding logic in screens made it easy to duplicate code, which meant that simple changes resulted in hunting down similar code in many screens.
An alternative was to put the domain logic in the database as stored procedures. However stored procedures give limited structuring mechanisms, which again led to awkward code. Also many people liked relational databases because SQL was a standard which would allow them to change their database vendor. Despite the fact that relatively few people actually do this, many more like the freedom to do it without too high a porting cost. Stored procedures are all proprietary, so would remove that option.
At the same time that client-server was gaining popularity, the object-oriented world was rising. The object community had an answer to the problem of domain logic, move to a three layer system. In this approach you have a presentation layer for your UI, a domain layer for your domain logic, and a data source. This way you can move all of that intricate domain logic out of the UI and put into a layer where you can objects to properly work with it.
Despite this the object bandwagon made little headway. The truth was that many systems were simple, or at least started that way. And although the three layer approach had many benefits the tooling for client-server was compelling if your problem was simple. The client-server tools also were difficult, or even impossible, to use in a three layer configuration.
I think the seismic shock here was the rise of the web. Suddenly people wanted to deploy client-server applications with a web browser. However if all your business logic was buried in a rich client then all your business logic needed to be redone to have a web interface. A well designed three layer system coul
